Nestable Compression Molded Plastic Pallet
Material: HDPE/PP
Production Process: Compression Molded
Deck Type: Fully Closed Molded Deck
Dimensions: 1200 × 1000 × 150 mm
Unit Weight: 17 kg ± 0.5 kg
Nestable: Yes
Color: Customizable
Logo: Customizable (Printed or Mold-in)
MOQ: 100 pcs
Lead Time: 15–25 Days
Description
Enlightening Pallet Industry Co., Limited is one of the leading manufacturers and suppliers of nestable compression molded plastic pallet in China. Please feel free to wholesale cheap nestable compression molded plastic pallet for sale here from our factory. Quality products and reasonable price are available.
Products Description
The Nestable Compression Molded Plastic Pallet allows empty pallets to fit closely together, reducing the space needed for storage and return transport. Its fully closed molded deck gives stable support to bags, cartons, pails, crates, and packaged parts.
Enlightening Pallet is a China manufacturer and wholesale supplier of compression molded plastic pallets. Custom colors and logos are available for different pallet management systems.
Products Specifications
|
Parameter |
Specification Details |
|
Standard Size |
1200 × 1000 × 150 mm |
|
Material |
HDPE / PP |
|
Production Process |
Compression Molded |
|
Unit Weight |
17 kg ± 0.5 kg |
|
Deck Design |
Fully Closed Molded Deck |
|
Surface Structure |
Molded Round & Rectangular Grooves |
|
Base Structure |
Reinforced Nine-Leg Base |
|
Static Load |
Up to 3000 kg |
|
Dynamic Load |
Up to 1300 kg |
|
Racking Load |
Not Recommended |
|
Entry Type |
4-Way Entry |
|
Nestable Design |
Yes |
|
Primary Storage Method |
Floor Stacking |
|
Color |
Black (Customizable) |
|
Logo Options |
Printed Logo or Mold-in Logo |
|
OEM / ODM |
Supported |
|
MOQ |
100 pcs |
|
Lead Time |
15–25 Days |
Core Advantages
Up to 40% Less Empty Pallet Volume

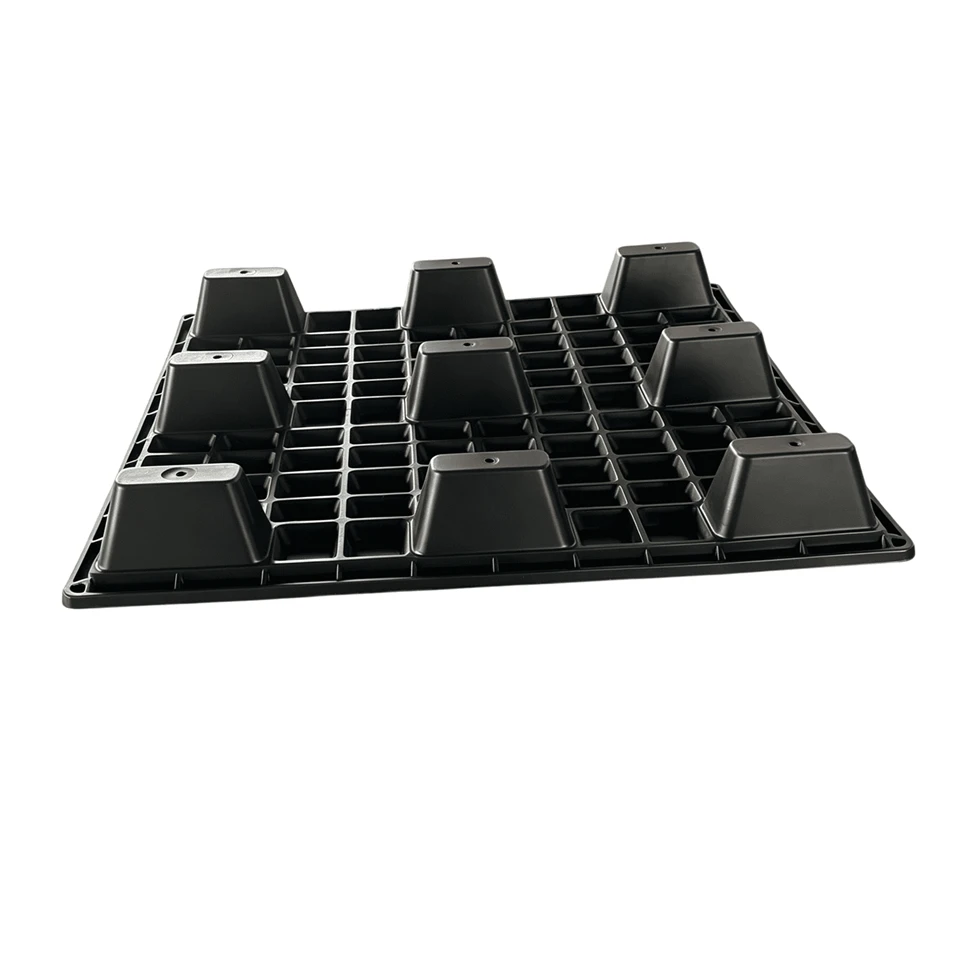

The tapered nine-leg base allows empty pallets to fit partly inside one another. This can reduce idle storage and return transport volume by up to 40%, depending on the stack quantity and nesting height.
Fully Closed Support Surface
The closed molded deck provides broad contact under bags, cartons, pails, crates, and packaged components. It is suitable for goods that cannot receive enough support from an open-grid pallet.
Balanced Weight and Load Capacity
At 17 kg, the pallet supports up to 1,300 kg during forklift handling and 3,000 kg on a flat floor. It provides stronger load support than a basic lightweight nestable pallet without using a heavy runner base.
Four-Way Forklift Access
The nine-leg structure allows forklifts to enter from four directions. Operators can handle the pallet more easily in storage areas, loading zones, and narrow warehouse aisles.
Built for Repeated Nesting
The pallet is formed as one compression-molded structure with integrated feet and bottom ribs. It can be nested repeatedly without loose runners, boards, or separate base parts.
Products Applications
Empty Pallet Return
After unloading, the pallets can be nested into compact stacks. This allows each return vehicle to carry more empty pallets.
High-Volume Pallet Storage
Companies that keep large pallet inventories can use the nesting structure to reduce stack volume and release more warehouse space.
Reusable Distribution Loops
The pallet suits repeated movement between suppliers, warehouses, production sites, and distribution centers. Empty units take up less space between each transport cycle.
Warehouse Floor Staging
The 3,000 kg static load supports goods placed temporarily on flat warehouse floors. The closed deck keeps bags, cartons, and containers stable during staging.
Mixed Packaged Loads
The broad molded surface supports different package bases, including bags, boxes, pails, crates, and component packaging.
Purchasing Guide
Confirm the Dynamic Load
Select the pallet based on the actual load moved by forklift and leave enough safety margin. Do not treat the static load as the maximum forklift handling load.
Check the Cargo Base
Cartons, bags, plastic pails, and containers should contact several raised deck areas. Use a slip sheet for very small packages.
Confirm Equipment Compatibility
Check the fork width, fork height, wheel position, and entry direction before ordering.
Check Nesting Efficiency
Compare the nesting height and stack quantity with the available warehouse and return vehicle space.
Confirm the Working Conditions
Tell Enlightening Pallet about the operating temperature, sunlight, chemicals, moisture, and impact conditions so we can recommend the right material.
Frequently Asked Questions
Q: How does this Nestable Compression Molded Plastic Pallet achieve nesting?
A: The tapered feet enter the matching recessed positions of the pallet below, allowing empty pallets to form a compact stack.
Q: How much space can nested pallets save?
A: Empty storage and return volume can be reduced by up to 40%. The actual result depends on the number of pallets and the nesting height of each additional unit.
Q: Can this pallet be placed on warehouse racks?
A: No. The nine-leg base is designed mainly for floor storage, forklift transport, and reusable distribution systems.
Q: What load can the pallet carry?
A: It supports up to 3,000 kg static load and 1,300 kg dynamic load when the cargo is distributed evenly.
Q: What goods suit the closed molded deck?
A: The deck is suitable for bags, cartons, pails, crates, containers, and packaged parts that need broad bottom support.
Q: Can Enlightening Pallet customize this model?
A: Yes. Enlightening Pallet supports custom colors, printed or molded logos, identification marks, and material options.
Q: What is the normal production lead time?
A: Standard production usually takes 15–25 days after the specifications and order details are confirmed.
