Understanding Standard Pallet Size Dimensions

Choosing the right pallet size affects much more than the space occupied by the pallet. For procurement teams, pallet dimensions influence cargo stability, warehouse racking, forklift handling, truck loading, export transportation, and overall logistics efficiency.



Pallets are available in many regional and industry-standard sizes. Common dimensions include 48 × 40 inches, 1200 × 1000 mm, 1200 × 800 mm, 1100 × 1100 mm, and 1165 × 1165 mm.



However, pallet size should never be considered alone. Buyers also need to check load capacity, bottom structure, forklift entry, rack compatibility, cargo dimensions, and destination market.



This guide compares common standard pallet sizes and dimensions and explains how buyers can select the right plastic pallet for warehouse, manufacturing, export, food, beverage, retail, and industrial applications.







ISO standard pallet size dimensions are widely referenced in international material handling and logistics.

ISO 6780 defines principal pallet dimensions and dimensional tolerances for flat pallets used in intercontinental material handling. These dimensions help logistics operators improve compatibility between pallets, warehouses, handling equipment, and transportation systems.

Using a common pallet footprint can simplify warehouse planning, loading, unloading, and international transportation.

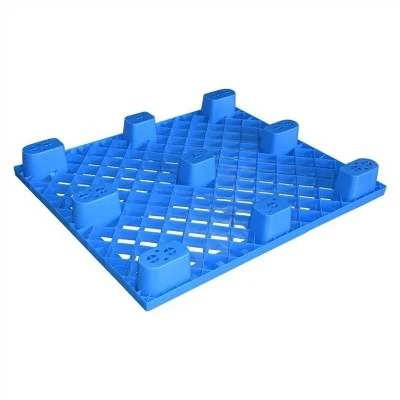

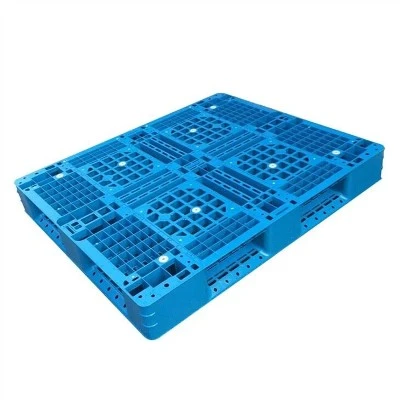

ISO Pallet Size Chart



Buyer Note: A standard footprint does not mean all pallets with that size have the same performance. Two 1200 × 1000 mm pallets may have very different pallet weights, structures, dynamic loads, static loads, and racking capacities.







Regional logistics systems often use different pallet footprints. Buyers should confirm the destination warehouse, transportation system, and customer requirements before placing a bulk order.

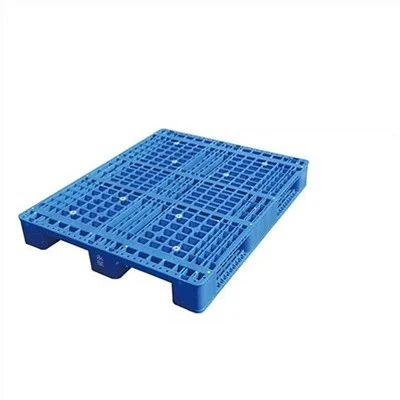

A 1200 × 800 mm footprint describes the pallet size, not its complete structure or load performance.









The table below provides a quick comparison for procurement teams.

Standard Size Does Not Mean Standard Performance

Two plastic pallets with exactly the same dimensions can have completely different applications.

For example, one 1200 × 1000 mm plastic pallet may be a lightweight nine-leg model designed mainly for one-way export. Another pallet with the same footprint may use a three-runner base and internal steel reinforcement for warehouse racking.



Buyers therefore need to evaluate:

Size + structure + material + pallet weight + load requirement + handling method + storage condition

instead of choosing a pallet based only on length and width.







Different industries select pallet sizes according to cargo type, handling equipment, warehouse design, and distribution requirements.



Retail and Grocery

The 48 × 40 inch pallet is commonly used in North American grocery and retail logistics.Its footprint works with many distribution centers, warehouses, forklifts, and transport systems.For retail purchasing projects, buyers should confirm the pallet requirements of the receiving warehouse before ordering large quantities.



Automotive

Automotive manufacturers and component suppliers may use standard pallet footprints such as 48 × 40 inches as well as customized pallet sizes.The right choice depends on the dimensions and weight of engine components, automotive parts, plastic components, metal parts, cartons, and returnable packaging.Large or irregular components may require a customized pallet footprint or reinforced structure.



Pharmaceutical and Food Applications

Pallet dimensions are only one consideration in food and pharmaceutical supply chains.Buyers may also require smooth and easy-to-clean surfaces, closed deck designs, virgin HDPE material, stable dimensions, four-way forklift entry, cold-storage compatibility, and reduced dirt or moisture retention.For applications requiring a smooth closed surface and reinforced structure, buyers can review our FDA Food Grade Plastic Pallets.



Sugar Mills, Flour Mills, and Salt Mills

For some bulk bag and large packaged-product applications, a 1400 × 1200 mm pallet provides a larger loading surface than common 1200 × 1000 mm pallets.Products such as sugar, flour, salt, raw materials, and industrial bags can require more deck area and better load distribution.When selecting pallets for these applications, buyers should confirm the bag footprint, total palletized weight, stacking method, forklift handling conditions, and whether the pallet will enter warehouse racks.













For procurement teams, choosing a pallet should follow a clear process rather than starting with the cheapest available size.



1. Start with the Cargo Dimensions

The pallet footprint should match the products being loaded.

Measure the length and width of cartons, bags, drums, crates, containers, machinery components, or other packaged goods.

Ideally, the cargo should stay within the pallet footprint without excessive overhang.

For cartons, buyers can calculate:

Carton size → cartons per layer → number of layers → palletized load dimensions

For a more detailed packing calculation, see Click to see how many boxes are on a pallet?.



2. Confirm Static, Dynamic, and Racking Load

One of the most common pallet purchasing mistakes is using a single load number for every operating condition.

Plastic pallet load capacity normally needs to be considered under three conditions.

Static Load

Static load refers to the load supported while the pallet remains stationary on a flat surface.

Dynamic Load

Dynamic load applies when a loaded pallet is lifted and transported by a forklift or similar handling equipment.

Racking Load

Racking load applies when a pallet is supported by warehouse rack beams rather than sitting fully on the floor.

A pallet suitable for floor storage is not automatically suitable for beam racking.

For a deeper explanation of these differences, see Plastic Pallet Load Types Explained: Static, Dynamic, and Racking Weight Limits.

When requesting a quotation, do not simply provide the cargo weight. Tell the supplier whether the pallet will be stored on the floor, moved by forklift, stacked, or placed on racks.



3. Check the Warehouse Racking System

If the pallet will be stored on warehouse racks, the rack dimensions should be confirmed before selecting the pallet.

Important information includes rack beam spacing, rack depth, number of pallets per bay, cargo weight, load distribution, pallet orientation, support-bar conditions, and storage temperature.

Plastic pallets may flex when supported between rack beams. The actual racking performance therefore depends on pallet structure, material, steel reinforcement, load distribution, and rack span.

For demanding warehouse applications, a product such as a Heavy Duty Rackable Plastic Pallet may be more suitable than a lightweight export pallet.

Buyer Tip

If you are unsure whether a pallet can be used on your existing racks, send the supplier a photo or drawing of the rack together with the beam spacing, pallet size, and load weight.

This is more useful than simply asking for a "heavy-duty pallet."



4. Check Forklift and Pallet Jack Compatibility

Pallet size must also match the handling equipment used in the facility.

Buyers should confirm fork width, fork spacing, fork thickness, fork entry height, entry direction, and whether the pallet will be handled by forklift or hand pallet truck.

Some pallets provide four-way forklift entry but have different access conditions for hand pallet trucks because of their bottom structure.

For example, a three-runner pallet, nine-leg pallet, and full-perimeter pallet may all have the same overall dimensions but work differently with handling equipment.

For bulk projects, provide the model or fork dimensions of your existing equipment if compatibility is uncertain.



5. Check the Storage Space

Confirm that the pallet dimensions fit the actual warehouse.

Important measurements include rack opening, floor storage area, aisle width, maximum stacking height, door dimensions, lift dimensions, and conveyor width.

For example, a warehouse designed around a 1200 × 1000 mm pallet footprint may not operate efficiently if a wider custom pallet is introduced.

Storage planning should also account for the total height of:

Pallet + cargo + stacking clearance

For guidance on empty or loaded pallet stacking, see Click to see how to stack plastic pallets?.



6. Consider Transportation Requirements

The pallet should also fit the transportation method.

Buyers should check truck internal dimensions, container dimensions, pallet orientation, cargo height, gross cargo weight, loading method, double-stacking restrictions, and loading or unloading equipment.

Theoretical pallet quantity alone does not determine transport efficiency. Cargo height and weight can limit the actual number loaded.

For truck planning, see Click to see how many pallets fit in a 26ft box truck?.



7. Consider Pallet Weight

Pallet self-weight affects handling, transport cost, structure, and empty pallet movement.

Lightweight plastic pallets are commonly considered for one-way shipping and export projects, while heavier reinforced pallets are generally used when repeated handling or stronger load performance is required.

For more information, see How Much Do Plastic Pallets Weigh?.

Buyers should avoid selecting the lightest pallet automatically. The correct pallet weight depends on the required structure and operating conditions.



8. Confirm Export Requirements

For export projects, the receiving customer should confirm the required footprint whenever possible.

The pallet may need to match destination warehouse standards, customer packaging specifications, forklift systems, automated lines, distribution centers, and returnable packaging systems.

For one-way export projects where empty pallet return is not required, a lightweight nestable structure can help reduce unused shipping and storage volume.

An example is our One Way Plastic Pallet for Export.



9. Check Industry Standards and Local Requirements

Some industries and customers specify pallet dimensions or structures in their purchasing documents.

Retailers, food processors, pharmaceutical companies, automotive manufacturers, warehouse operators, and logistics providers may have their own pallet specifications.

Before purchasing, confirm the required footprint, material, load capacity, deck style, bottom structure, color, hygiene requirements, identification requirements, and customer-specific standards.

Do not select a pallet only because its size is common in the destination country.







Once the pallet footprint is confirmed, the next step is selecting the right structure.

The same standard pallet size may be available in several structures.



For example, a 1200 × 1000 mm plastic pallet can be designed as a lightweight export pallet, nine-leg nestable pallet, three-runner stackable pallet, closed-deck hygienic pallet, steel-reinforced rackable pallet, or heavy-duty industrial pallet.

This is why buyers should select the application and operating conditions first, then determine the required pallet structure.









One-Way Export

For one-way export, buyers normally focus on low self-weight, nestable structure, four-way forklift entry, sufficient dynamic load, container efficiency, and low unit cost.Using a heavy rackable pallet for a single export shipment may add unnecessary material and transportation cost.



Warehouse Circulation

For pallets repeatedly used inside a warehouse, priorities usually shift toward long-term durability, impact resistance, stable dimensions, repeated forklift handling, stackability, and replacement planning.The lowest-cost export pallet may not provide the service life required for repeated circulation.



Warehouse Racking

Rackable pallets require more detailed confirmation.

Provide the supplier with: Pallet footprint + cargo weight + rack beam spacing + storage time + operating temperature

Steel reinforcement may be added to some pallet structures when higher rack performance is required.



Food and Beverage

Food and beverage buyers should consider easy cleaning, smooth deck surface, moisture resistance, material requirements, cold-storage environment, product contamination control, and repeated washing.The pallet dimensions should still match the warehouse and transport system, but hygiene requirements often influence the deck and bottom design.



Bulk Bags and Industrial Materials

Large bags of flour, sugar, salt, resin, chemicals, minerals, or industrial raw materials often require a larger deck area, good load distribution, an anti-slip surface, strong bottom structure, and forklift access from multiple directions.The bag footprint should be measured before selecting the pallet dimensions.







Standard plastic pallet sizes cover many logistics applications, but not every product, rack, machine, or warehouse follows a standard footprint.

Our website also includes several non-standard and application-specific pallet dimensions.

 For larger industrial loads, see the 1600 × 1400 mm Euro Type Standard Size Plastic Pallet.

 For compact loads and smaller containers, see the 1000 × 500 mm Small Size Pallet.

 For specific warehouse applications, see the 1100 × 800 mm Warehouse Plastic Pallets.

 For large loads requiring a wider platform, see the 1400 × 1200 mm Double Side Pallet.

Non-standard pallet projects may involve changes to pallet dimensions, color, logo, deck structure, bottom structure, reinforcement, material, and identification markings.

For a custom project, buyers should provide the cargo dimensions and operating requirements before confirming the pallet design.







Before requesting a quotation, prepare the following information.



Providing these details at the beginning of the inquiry helps reduce repeated specification confirmation.







Procurement teams can use the following process to narrow down a suitable pallet before requesting a quotation.







Understanding standard pallet sizes and dimensions is the first step in selecting a suitable pallet, but dimensions alone are not enough for a purchasing decision.



Procurement teams should evaluate the pallet based on:

Cargo dimensions + pallet footprint + static load + dynamic load + racking load + forklift compatibility + warehouse conditions + transport requirements



A standard size can simplify logistics, but the pallet structure still needs to match the actual operating environment.

As an original manufacturer of plastic pallets, ENLIGHTENING PALLET has been committed to the research, development, and production of plastic pallets since 2000.



For a faster product recommendation, prepare your required pallet size, order quantity, cargo weight, application, rack condition, forklift type, and destination country.



Then contact our team for a plastic pallet recommendation and bulk quotation.

We can help you compare suitable pallet sizes and structures before confirming your order.
