Enlightening Pallet manufactures 1000L collapsible liquid IBC containers for bulk liquid storage, transportation, and returnable packaging. Each unit combines a reusable foldable outer box with a replaceable liquid liner, helping you handle large liquid volumes and reduce empty-container storage space. With a 1200 × 1000 mm footprint, four-way forklift access, and a folded height of 330 mm, our foldable liquid IBC supports efficient warehouse handling and return logistics. As a China-based IBC manufacturer and supplier, we provide wholesale supply, liner matching, and OEM/ODM services for bulk packaging projects.

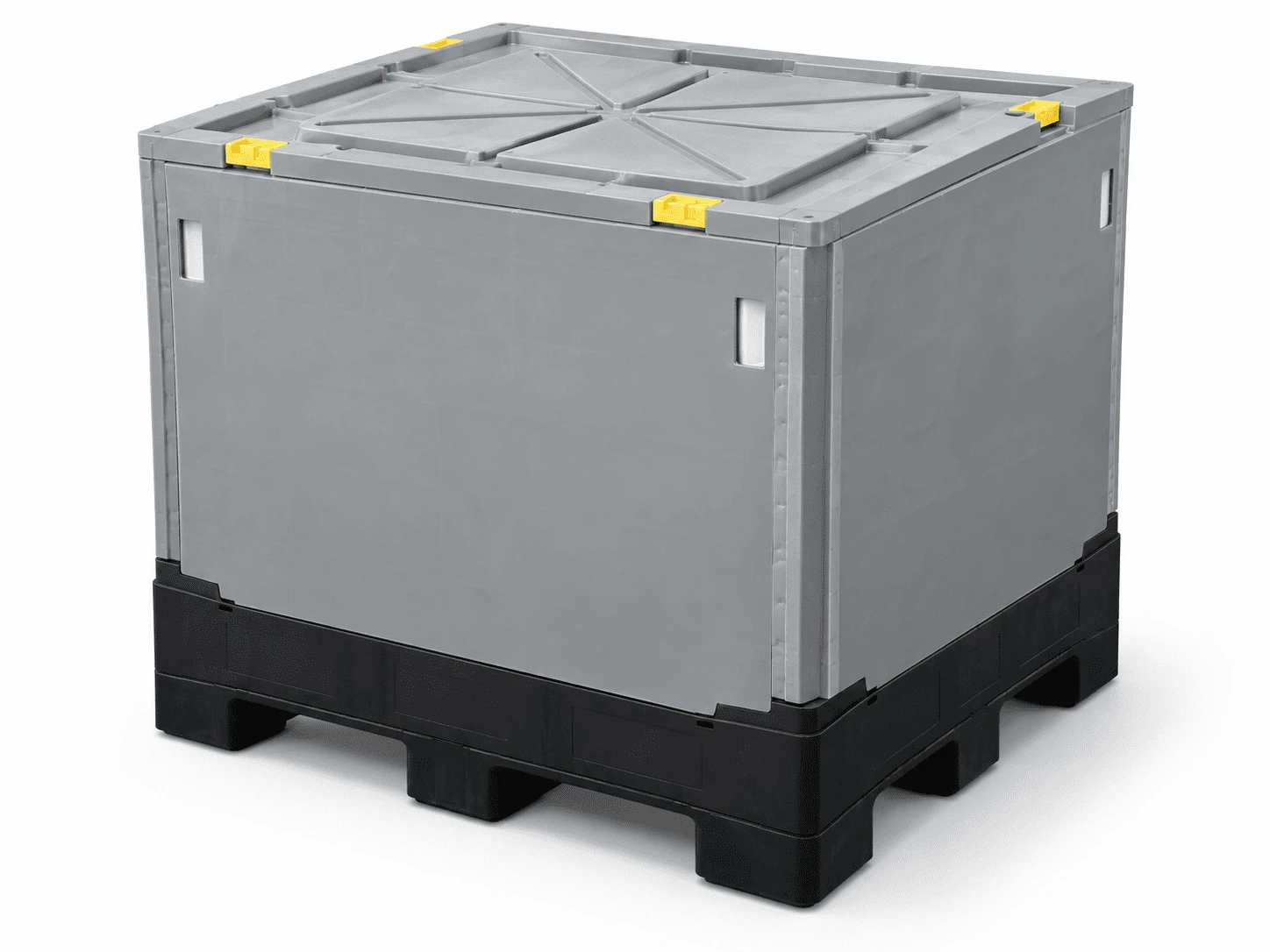

1000L Collapsible Liquid IBC Containers
Why Choose Our Collapsible Liquid IBC?
Space-Saving Foldable Design

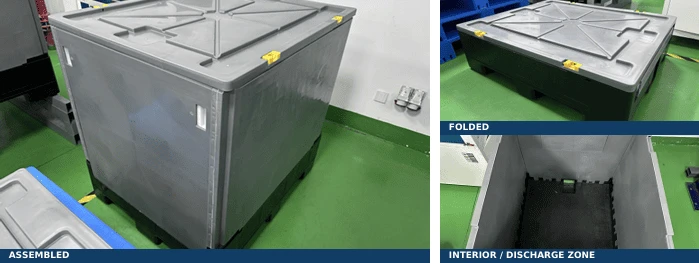

Our collapsible liquid IBC container folds from 1130 mm to 330 mm in height after unloading. The compact structure reduces empty-container storage space and improves return transport efficiency for bulk liquid packaging and reusable IBC systems.
Reusable Outer Box for Multiple Cycles
The durable outer box supports repeated use in liquid storage and transportation. Combined with disposable IBC liner bags, it allows you to reuse the outer structure while replacing the inner bag for each new filling cycle, reducing packaging replacement costs.
Food-Grade PE Liner Bag Options
Our 1000L foldable IBC supports disposable IBC liner bags made from food-grade PE material. You can choose an upper discharge outlet or a dual-outlet configuration with top filling and bottom discharge to meet different liquid handling requirements.
Flexible Handling & Compatibility
The 1200 × 1000 mm pallet base features 4-way forklift access for convenient warehouse handling. Customized filling ports, discharge valves, and fittings help the liquid IBC container match your existing filling and unloading equipment.
1000L Collapsible Liquid IBC Specifications
| Item | Specification | Item | Specification |
|
Nominal Capacity |
1000 L |
Fold-Down Ratio |
3.4:1 |
|
Structure |
Reusable Collapsible Outer Container |
Fork Entry |
4-Way |
|
Base Footprint |
1200 × 1000 mm |
Handling |
Forklift / Pallet Jack |
|
Assembled Size |
1200 × 1000 × 1130 mm |
Loaded Stacking Guide |
Up to 2 High |
|
Folded Size |
1200 × 1000 × 330 mm |
Static Stacking Guide |
Up to 5 High |
|
Internal Dimensions |
1120 × 920 × 975 mm |
OEM/ODM |
Available |
Applications of Collapsible Liquid IBC
Fruit & Juice Processing
Fruit processors use 1000L collapsible liquid IBC containers to store and transport fruit puree, juice concentrate, fruit preparations, and other liquid fruit ingredients. A compatible food-grade PE liner separates the contents from the reusable outer box during storage and transportation.
Syrups, Liquid Sugar & Sauces
Food manufacturers use liquid IBC containers for bulk storage and transfer of glucose syrup, liquid sugar, sweeteners, sauces, dressings, and tomato-based ingredients. The large capacity makes ingredient transfer between production facilities and filling lines easier.
Dairy & Liquid Egg Products
Dairy plants and food processors use 1000L IBC containers to handle cream, liquid egg products, milk-based ingredients, and other compatible liquid materials. This bulk packaging format helps organize ingredient storage and maintain a steady supply during continuous production.
Edible Oils & Liquid Fats
Vegetable oil producers, food ingredient suppliers, and food processing companies use bulk liquid IBC containers for cooking oils, edible fats, and other compatible oil-based products. The large capacity supports storage and transfer between processing facilities, warehouses, and distribution centers.
Cosmetics & Personal Care
Cosmetic manufacturers use liquid IBC containers to store and transport surfactants, cosmetic oils, liquid soap bases, shampoo ingredients, and other compatible personal care raw materials. Bulk transportation simplifies material supply and reduces the handling of smaller individual packages.
Industrial Bulk Liquid Transport
Industrial manufacturers use collapsible liquid IBC containers to transport compatible non-hazardous liquid additives, processing aids, and chemical raw materials. The reusable outer structure supports multiple transport cycles, while the foldable design saves empty-container storage space and reduces return logistics costs.
Collapsible Liquid IBC vs. Rigid IBC
|
Feature |
Collapsible Liquid IBC |
Conventional Rigid IBC |
|
Empty Container Storage |
Folds to reduce occupied space |
Maintains full size |
|
Return Logistics |
More efficient for empty returns |
Higher empty return volume |
|
Outer Container |
Reusable collapsible structure |
Rigid structure |
|
Liquid Contact |
Replaceable liner system |
Usually integrated inner bottle |
|
Packaging Cycle |
Suitable for repeated closed-loop use |
Depends on IBC type |
|
Forklift Handling |
4-way pallet base |
Commonly forklift compatible |
|
Application Flexibility |
Liner can be selected by application |
Depends on inner bottle specification |
|
Best Use |
Returnable packaging, bulk liquid programs |
General bulk liquid storage and transport |
Return Logistics Efficiency
One key advantage of a foldable liquid IBC container is its reduced space requirement during empty returns. After unloading, the container folds from 1130 mm to 330 mm high, allowing more empty units to fit into a shipping container.
|
Container Type |
Assembled |
Folded |
|
20GP |
18 PCS |
77 PCS |
|
40GP |
40 PCS |
147 PCS |
|
40HC |
40 PCS |
168 PCS |
A 40HC container can hold up to 168 folded units, compared with 40 assembled units under the current loading plan. This helps reduce empty return volume and improve transport efficiency for reusable IBC systems and closed-loop packaging projects.
How to Choose a Collapsible Liquid IBC
Choosing the right 1000L collapsible liquid IBC depends on your liquid type, operating conditions, and filling and discharge processes. Provide the following information so we can recommend a suitable container and disposable liner configuration for your application.
Liquid Compatibility：Provide the liquid name, composition, and product-contact requirements. Food ingredients, dairy products, edible oils, cosmetics, and industrial liquids may require different liner materials and specifications.
Operating Temperature：Specify the expected filling, storage, transportation, and discharge temperatures. These details help determine whether the selected PE liner and related fittings are suitable for your operating conditions.
Liquid Viscosity：Share the viscosity of your liquid, especially for products such as syrups, sauces, creams, and emulsions. Higher-viscosity liquids may require specific outlet sizes, valve configurations, and discharge methods.
Filling Connection：Provide your filling method, equipment type, and connection dimensions. The disposable IBC liner can be configured with a suitable filling opening to match your existing filling equipment and loading process.
Discharge Connection：Specify your hose, pump, valve, and outlet requirements. Choose an upper discharge outlet or a dual-outlet configuration with top filling and bottom discharge according to your unloading process and downstream equipment.
Compliance & Documentation：Identify the destination market and any required product-contact standards or documentation. For food, cosmetic, and industrial applications, we can discuss relevant PE liner material specifications, food-contact documents, and product compliance requirements.
Why Choose Enlightening Pallet?
Factory-Direct Supply
Enlightening Pallet manufactures 1000L collapsible liquid IBC containers at our own production facilities. We provide factory-direct pricing, wholesale supply, and support for long-term purchasing projects.
OEM & ODM Support
We support OEM and ODM projects for foldable liquid IBC containers, including product configuration, liner selection, filling and discharge connections, colors, and packaging requirements.
Quality Management
Our manufacturing operations follow ISO 9001 and ISO 14001 management systems. Relevant CE documentation, REACH compliance information, and SGS test reports can be provided according to the product configuration and project requirements.
Bulk Order Supply Capability
We support distributors, liquid packaging companies, food ingredient processors, and industrial buyers with medium- and large-volume orders. Our production planning helps coordinate order quantities, delivery schedules, and repeat purchases.
IBC Liner Matching Support
We provide disposable PE IBC liner bags for compatible liquid packaging applications. Buyers can specify liner dimensions, material requirements, filling ports, upper discharge outlets, or dual-outlet configurations with top filling and bottom discharge.
Sample & Project Evaluation
Samples are available before bulk purchasing. You can evaluate container dimensions, folding structure, liner compatibility, forklift handling, and filling and discharge connections before confirming a larger order.
Get the Right Collapsible Liquid IBC for Your Business
Looking for a reliable solution for bulk liquid storage and transportation? Enlightening Pallet supplies reusable collapsible liquid IBC containers with liner matching, OEM/ODM options, and factory-direct pricing.Tell us your liquid type, liner requirements, and order quantity. Our team will help you select the right configuration for your business.
Frequently Asked Questions
Q: What is a 1000L collapsible liquid IBC?
A: A 1000L collapsible liquid IBC is a reusable foldable outer container designed for bulk liquid storage and transportation. It works with a suitable liquid liner bag to handle different liquid packaging requirements.
Q: Does the collapsible liquid IBC come with a liner?
A: Yes. Enlightening Pallet can supply disposable PE IBC liner bags or work with customer-specified liners. The liner material, dimensions, filling port, and discharge configuration can be confirmed before ordering.
Q: Can I request a sample before bulk purchasing?
A: Yes. Samples are available so you can evaluate the container dimensions, folding structure, liner compatibility, and filling and discharge connections before placing a bulk order.
Q: How small is the IBC when folded?
A: The assembled height is 1130 mm, while the folded height is 330 mm, giving a 3.4:1 fold-down ratio. This helps reduce empty-container storage and return transport space.
Q: Can the collapsible liquid IBC be handled by forklift?
A: Yes. The 1200 × 1000 mm pallet base provides 4-way forklift and pallet-jack entry for warehouse handling and transportation.
Q: Can the IBC be stacked when loaded?
A: Yes. The technical guide specifies up to 2-high loaded stacking, subject to the actual load, storage conditions, and operating requirements.
Q: What is the MOQ for a collapsible liquid IBC?
A: The minimum order quantity is 50 pieces. Please contact our team to confirm availability and requirements for customized orders.
Q: What is the typical delivery time?
A: Standard bulk orders generally require 15–30 days, depending on order quantity, liner specifications, customization, and production schedule.
Q: Can the collapsible liquid IBC be customized?
A: Yes. Enlightening Pallet supports OEM and ODM services, including liner selection, filling ports, discharge outlets, fittings, and outer box colors.
Q: What information is required for an IBC quotation?
A: Please provide your order quantity, liquid type, liner requirements, filling and discharge specifications, destination country, and operating conditions. Our team can then recommend a suitable collapsible liquid IBC configuration.
Enlightening Pallet Industry Co., Limited is one of the most professional collapsible liquid ibc manufacturers and suppliers in China, featured by quality products and competitive price. Please rest assured to wholesale cheap collapsible liquid ibc for sale here from our factory.
