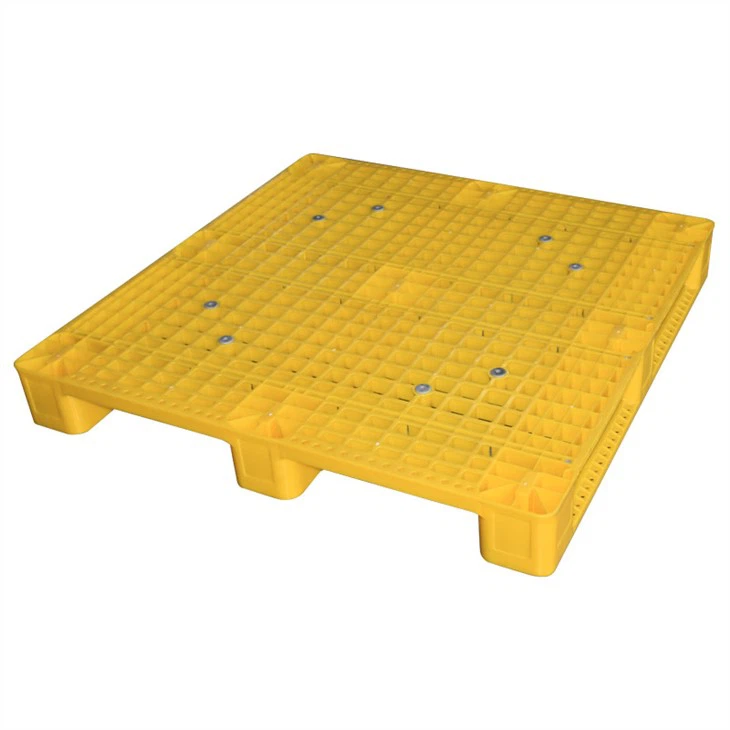

Steel Reinforced Rackable Plastic Pallets

Enlightening Pallet Industry Co., Limited is one of the leading manufacturers and suppliers of Steel Reinforced Rackable Plastic Pallets in China. Please feel free to wholesale cheap Steel Reinforced Rackable Plastic Pallets for sale here from our factory. Quality products and reasonable price are available.





Eight galvanized steel tubes reinforce the main load-bearing sections of the Steel Reinforced Rackable Plastic Pallets, helping the center remain stable when the pallet rests across rack beams. The three-runner base supports a rack load of up to 1200 kg and suits repeated warehouse circulation.



Enlightening Pallet is a Steel Reinforced Rackable Plastic Pallets​ manufacturer in China. Our factory supports wholesale orders, OEM projects, custom colors, logos and steel reinforcement options.





Parameter	Value
Product Type	Single-faced rackable plastic pallet
Dimensions (L×W×H)	1200×1000×150 mm
Material	100% Virgin HDPE
Steel Reinforcement	8 pcs galvanized steel tubes
Base Type	3 runners
Forklift Compatible	Yes
Hand Pallet Jack Compatible	Yes
Entry Type	4-way entry
Dynamic Load	1500 kg
Static Load	6000 kg
Rack Load	1200 kg
Unit Weight	20.5 kg
Color	Blue (customizable)
Certification	ISO 9001, SGS, FDA
MOQ	300 pcs
Origin	China





Built-in Steel Tubes Achieve 1200 kg Rack Load

Galvanized steel tubes are molded into the primary load-bearing zones of the deck. When seated on rack beams, the pallet withstands a maximum rack load of 1200 kg without compromising structural integrity.



Reduce Mid-Span Deflection Between Beams

Internal steel reinforcement stiffens the pallet body, preventing the center section from sagging while suspended between two beams. The deck remains flat under load, helping buyers reduce pallet scrap caused by warping and avoid the ongoing cost of premature replacement.



Stable Performance Through Repeated Cycles

Tested through multiple handling cycles-including floor stacking, forklift transfer, and high-bay rack storage-the pallet exhibits no permanent deformation, deck cracking, or loosening of the embedded tubes, ensuring reliable and consistent performance.



Optimized Strength-to-Weight Ratio

With a unit weight of 20.5 kg, the pallet supports a static load of 6000 kg, dynamic load of 1500 kg, and rack load of 1200 kg. Compared to non-reinforced plastic pallets, it delivers significantly higher rigidity in racking environments; unlike bulky all-steel units, it remains easy to handle during manual operations.

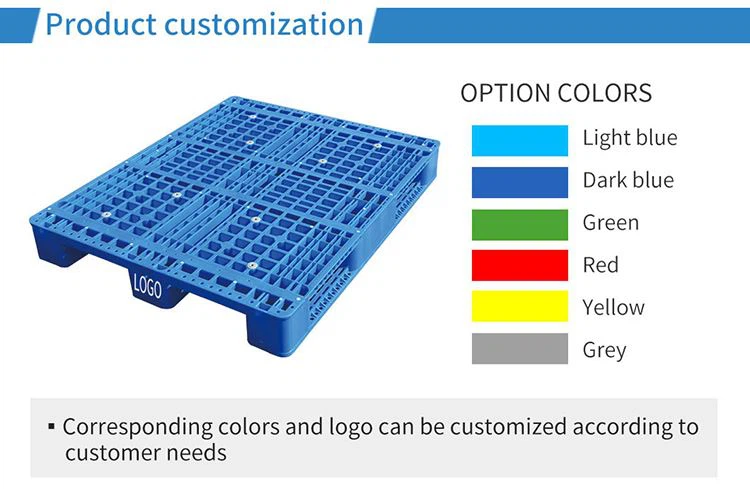

Custom Colors
Standard blue is available. Other colors can be produced for warehouse zones, product categories or company identification.



Custom Sizes
Dimensions can be developed to match the cargo footprint, rack layout and handling equipment. Custom mould requirements must be reviewed before production.



Custom Logo
Screen-printed and moulded logos are available for asset identification, brand display or internal pallet management.



Custom Steel Tube Quantity
The quantity of galvanized steel tubes can be adjusted according to the required load and pallet structure.



Custom Steel Tube Layout
Tube positions and directions can be reviewed according to the rack beam span, cargo contact area and load distribution.



What is the standard production lead time?

Standard production takes 7–15 business days after specification confirmation. Customized orders require 15–20 business days prior to shipment.



Can Enlightening Pallet provide samples before bulk production?

Yes. Pre-production samples are available to verify critical specs including overall dimensions, rack compatibility, and forklift/hand pallet jack entry clearance.



What is the difference between static, dynamic, and racking load?

Static load applies on a flat floor, dynamic load applies during forklift handling, and racking load applies when the pallet is supported by rack beams.



How can I confirm compatibility with my warehouse racks?

Provide the rack beam span, beam width, cargo weight, and load position before ordering.



Will the galvanized steel tubes rust?
The galvanized coating protects the steel tubes from normal warehouse moisture and routine cleaning. Long-term exposure to salt water, strong chemicals, or damaged coating may still cause rust.



Can the steel tubes be removed or replaced?
Yes. The steel tubes can be removed and replaced when necessary.



Can the number of steel tubes be customized?
Yes. The quantity and layout of the steel tubes can be adjusted according to the cargo weight, rack beam span, load distribution, and required racking capacity.



Will washing the pallet damage the steel tubes?
No. The pallet can be washed with water and neutral detergent. Strong corrosive chemicals should be avoided, especially if the pallet surface is damaged.
