4 Drum Hardcover Spill Pallet
Size: 1420×1470×2070 MM
Drum Capacity: 4 × 205 L
Sump Capacity: 410 L
Tare Weight: 121 KG
UDL: 1250 KG
Material: HDPE
MOQ: 30 PCS
OEM/ODM: Available
Description
Enlightening Pallet Industry Co., Limited is one of the leading manufacturers and suppliers of 4 drum hardcover spill pallet in China. Please feel free to wholesale cheap 4 drum hardcover spill pallet for sale here from our factory. Quality products and reasonable price are available.
Products Description

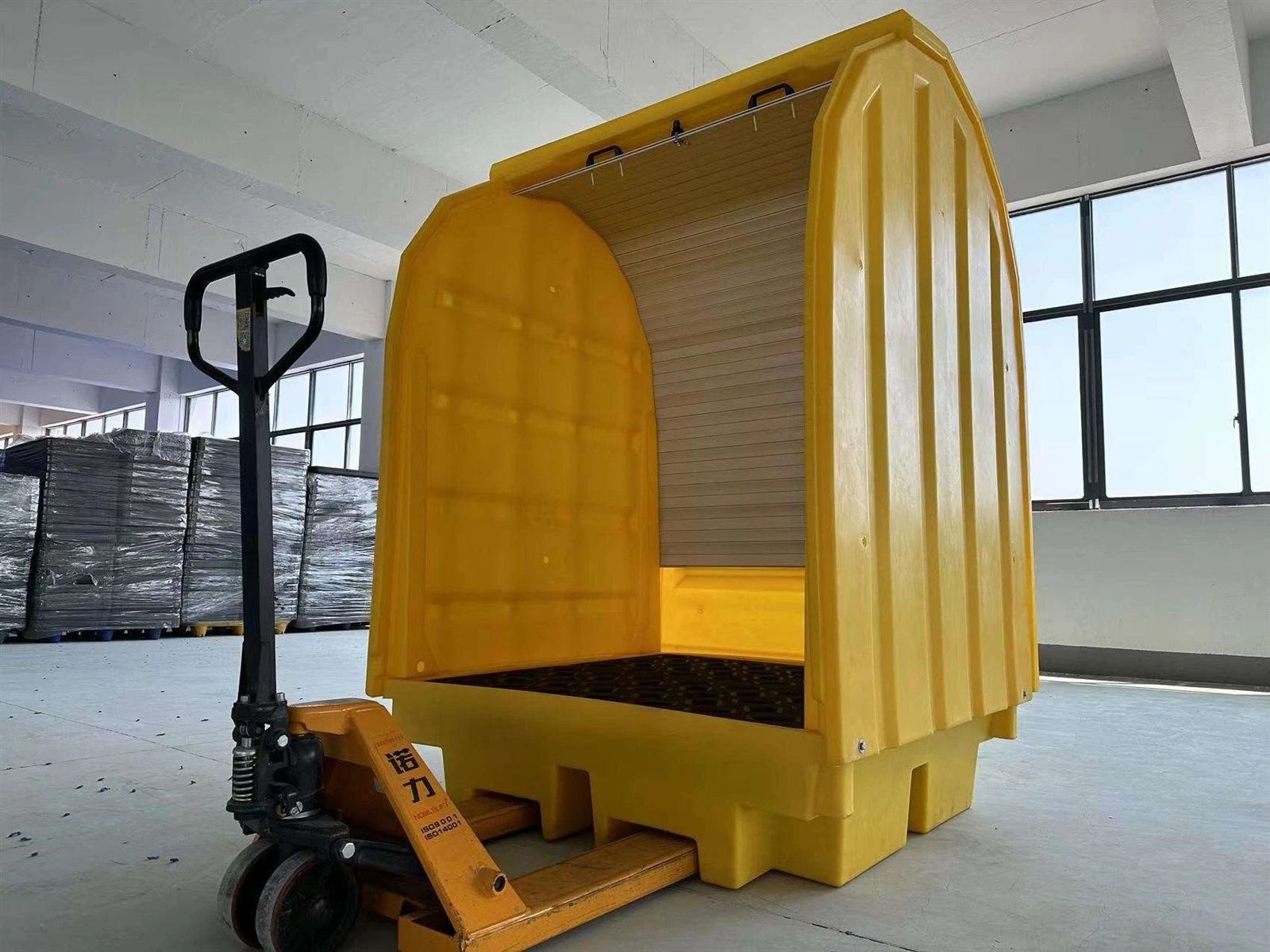

This 4 Drum Hardcover Spill Pallet features a 410L secondary containment sump and holds four 205L chemical drums. Its enclosed, lockable design protects stored drums from rain and dust in outdoor or semi-outdoor settings, while preventing unauthorized access.
Enlightening Pallet is a China manufacturer and supplier, so factory buyers get ready stock, wholesale pricing, and OEM service.
Products Specifications
|
Item |
Detail |
|
Product Name |
4 Drum Hardcover Spill Pallet |
|
Size (L×W×H) |
1420 × 1470 × 2070 MM |
|
Drum Capacity |
4 × 205 L drums |
|
Sump Capacity |
410 L |
|
Tare Weight |
121 KG |
|
Uniform Load (UDL) |
1250 KG |
|
Material |
HDPE (High-Density Polyethylene) |
|
Removable Grate |
Yes |
|
Drain Plug |
Yes |
|
Color |
Yellow, customizable |
|
MOQ |
30 PCS |
|
Lead Time |
15–30 days |
|
Origin |
China |
Products Advantages
Hard Cover for Outdoor Drum Storage
The hard cover protects four 205L drums from rain, dust, and direct outdoor exposure, while the sump keeps catching sudden leaks at the same time.
410L Secondary Containment Sump
The built-in sump holds up to 410 liters, equal to twice the volume of one 205L drum, giving operators enough space for leak containment.
Lockable Roller Shutter Door
The roller door opens for drum check, loading, and unloading, then closes to protect inner materials. Lockable design keeps drums from being fully exposed.
HDPE Body, Resists Acid and Alkali
HDPE stands up to oils, weak acids, caustics, and many solvents. Unlike steel bunds, it does not rust, so maintenance stays low in humid or coastal sites.
Drain Plug and Removable Parts for Easy Cleaning
After leaks or regular cleaning, collected liquid drains through the plug. This cuts the work of emptying the whole sump by hand and makes daily checks easier.
Forklift Slots for On-Site Relocation
Molded forklift slots let crews reposition the empty cabinet inside warehouses, chemical rooms, or production areas without heavy lifting.
Applications
Chemical Plant Drum Yard
Acid and solvent drums sit outside the mixing building. The hard cover blocks rainwater, keeping the 410L sump dry and ready for sudden leaks instead of filling with storm water.
Lubricant & Oil Warehouse
Grease and engine-oil drums get pumped daily. The roller door opens fast for dispensing, and the central lock keeps unauthorized staff away from flammable stocks during shifts.
Pharma & Lab Supply Room
Reagents and cleaning chemicals need a clean storage environment with restricted access. The cover keeps dust out, and the side door gives technicians quick access during daily rounds while maintaining access control.
Production Process
Mold Loading
HDPE powder is loaded into the rotomolding mold, and the mold is sealed.
01
Heating & Spinning
The mold is placed in a heating chamber and rotated on two axes. Internal plastic powder melts evenly at high temperature and coats the inner mold wall.
02
Cooling & Forming
After heating, the mold keeps rotating in a cooling chamber. Molten plastic solidifies completely, forming a one-piece, seamless tray structure.
03
Demolding
The mold opens and the molded spill pallet is removed.
04
Finishing
The pallet is trimmed, excess material is removed, and the drain plug is installed.
05
FAQ
Q: Can Enlightening Pallet customize the safety color and logo for our site?
A: Yes. Color, side labels, and logo can all be customized, which helps EHS identification across multi-site plants.
Q: What is the production lead time for 30–100 units?
A: Usually 15–30 days after deposit, depending on order quantity and customization requirements.
Q: Can the grate and sump be maintained on site?
A: Yes. The plastic grate lifts out directly, and the drain plug allows controlled liquid discharge. Plant staff can clean the sump without special tools.
Q: Is this 4 Drum Hardcover Spill Pallet suitable for coastal chemical yards?
A: Yes. HDPE does not rust and resists most chemicals. The hard cover reduces UV and salt-spray corrosion during outdoor drum storage.
